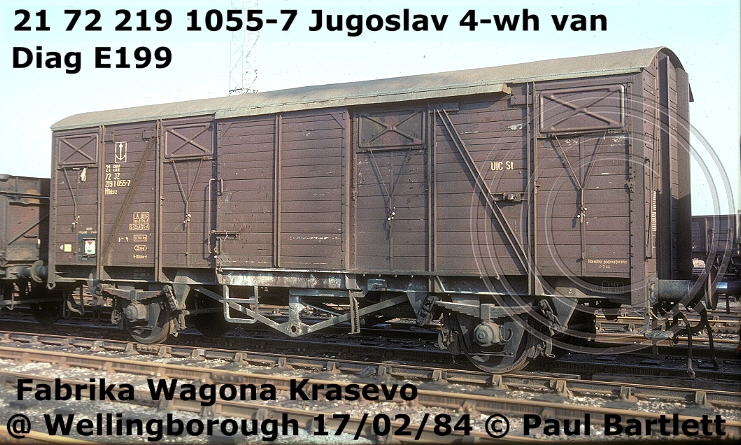

This photo was found at Paul Bartletts website
| 72 YU | Hfkks-z | IGA |
|
|
|
This photo was found at Paul Bartletts website |
| | CODE + VKM | 21 72 JZ | Jugoslovenske Zeleznice | ||
| | UIC 1980 | 21 72 2191 000 - 2191 099 | Hfkks-z | ||
| | 1980 ex | 21 72 2140 000 - 2140 099 | •Hfs-z |
| | 20. L/P | -- | cm | | 30. DB/SSH | 200 | cm | | 40. BR AUT | GP | |
| | 21. L/P Hbr | 1058 | cm | | 31. DH/ESH | 200 | cm | | 41. BR MAN | Handleverbr. | |
| | 22. AXT/BCA | 570 | cm | | 32. FLH | 125 | cm | | 42. No. BLT | 100 | |
| | 23. BAXT | -- | cm | | 33. GLW | 36 | t | | 43. Y BLT | ? | |
| | 24. IL | 926 | cm | | 34. TARE | 11,8 | t | | 44. BLT by | ? | |
| | 25. IB | 228 | cm | | 35. ABC max | 24,0 | t | | 45. Y + | ? | |
| | 26. BFL | 21,1 | m2 | | 36. @ KM/H | S | km/h | | 46. Y OBS | 1980 - 1989 | |
| | 27. IHS | ? | cm | | 37. KM/H max | S | km/h | | 47. DRW | LINK | |
| | 28. IHM | ? | cm | | 38. @ ABC | 24,0 | t | | 48. FOTO | LINK | |
| | 29. RF | 470 | hl | | 39. 120 km/h | -- | t | | 49. MORE INFO | LINK |
Rem:
JZ: 21=1064, 24=934, 25=235, 26=21,9, 29=504
