| 80 D | Gls 205 | IGA |
|
| | CODE + VKM | 01 80 DB | Deutsche Bundesbahn | ||

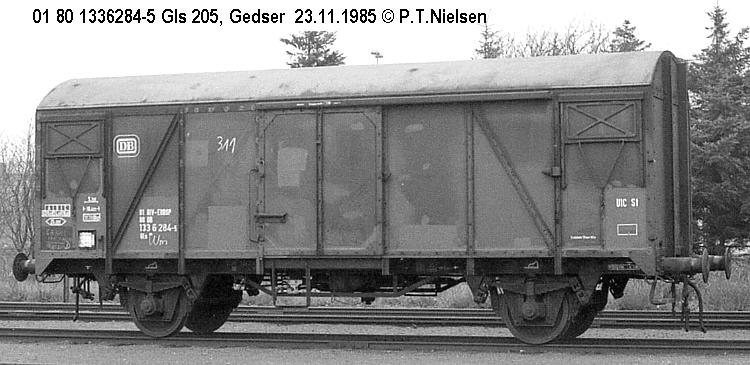

| | UIC 1980 | 01 80 1331 100 - 1345 007 | Gls 205 Gkkls 205 (a) | ||

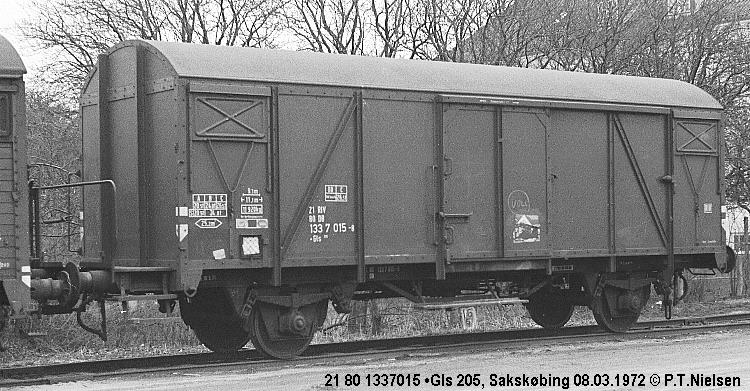

| | UIC 1965 | 21 80 1331 100 - 1345 007 | •Gls 205 | ||
| | Ex 1965 |
DB 255 000 - 269 099 |
Gms 54 |
| | 20. L/P | 1058 | cm | | 30. DB/SSH | 180 | cm | | 40. BR AUT | KE-GP | |
| | 21. L/P Hbr | 1108 | cm | | 31. DH/ESH | 201 | cm | | 41. BR MAN | (Hbr) | |
| | 22. AXT/BCA | 584 | cm | | 32. FLH | 122 | cm | | 42. No. 1964 | 13.908 | |
| | 23. BAXT | -- | cm | | 33. GLW | 40 | t | | 43. Y BLT | 1955 - 1950 | |
| | 24. IL | 929 | cm | | 34. TARE | 11,8 | t | | 44. BLT by | ||
| | 25. IB | ? 266 | cm | | 35. ABC max | 28,0 | t | | 45. Y + | 1965 | |
| | 26. BFL | 25,0 | m2 | | 36. @ KM/H | S | km/h | | 46. Y OBS | 1965 - 1994 | |
| | 27. IHS | 210 | cm | | 37. KM/H max | S | km/h | | 47. DRW | LINK | |
| | 28. IHM | 268 | cm | | 38. @ ABC | 28,0 | t | | 48. FOTO | LINK | |
| | 29. RF | 630 | hl | | 39. 120 km/h | -- | t | | 49. MORE INFO | LINK |
Rem:
a) Gkkls 205: S 24,0 t
