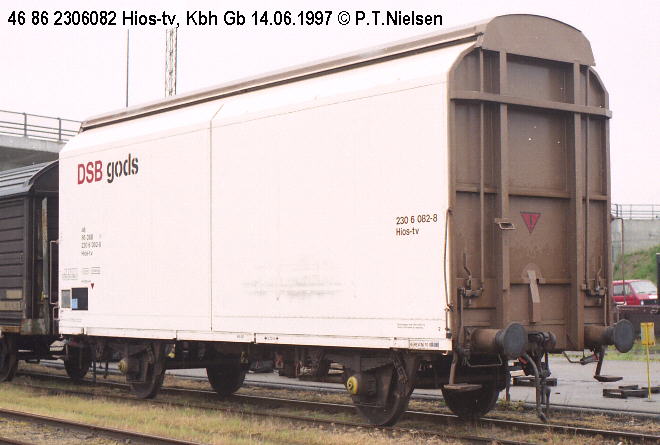

| 86 DSB | Hios-tv 1994 | IGA |
|
| | CODE + VKM | 46 86 DSB | DSB gods | ||
| | UIC Nr | 46 86 2306 000 - 2306 095 | Hios-tv FDB | ||
| | Ex Nr | 42 86 2307 000 - 2307 099 | Hios-v |
| | 20. L/P min | -- | cm | | 30. DB/SSH | 430 | cm | | 40. BR AUT | KE-GP | |
| | 21. L/P max | 1058 | cm | | 31. DH/ESH | 293 | cm | | 41. BR MAN | -- | |
| | 22. AXT/BCA | 570 | cm | | 32. FLH | 1215 | mm | | 42. | ||
| | 23. BAXT | -- | cm | | 33. GLW | 40 | t | | 43. Y PROD | 1981 - 1982 | |
| | 24. IL min | 2x 430 | cm | | 34. TARE | 13,5 | t | | 44. Y + | 1994 | |
| | 25. IB | 250 | cm | | 35. ABC max | 26,5 | t | | 45. Y OBS | 1994 - 2001 | |
| | 26. BFL | 21,5 | m2 | | 36. @ KM/H | S | km/h | | 46. | ||
| | 27. IHS | ca. 278 | cm | | 37. KM/H max | S | km/h | | 47. DRW | LINK | |
| | 28. IHM | 293,5 | cm | | 38. @ ABC | 26,5 | t | | 48. FOTO | LINK | |
| | 29. RF | 625 | hl | | 39. 120: 0t | -- | | 49. NOTE | LINK |
Rem:
Divided into 2 cells with adhustable space, insulated • In 2 justierbare Zellen aufgeteilt, Wärmeschutzisolierung
